Push a face and watch the solid follow. Then constrain the sketch behind it, drive it from a parameter table, project a drawing from it, mesh it, and post the G-code — without leaving the page, and without a single operation that your scripts and agents cannot call themselves.
Runs in any modern browser on WebGL. No plug-in, no install, no licence dongle.
Most tools make you pick a side: a sketching tool that cannot hold a tolerance, or a parametric tool where nothing moves until you have declared everything. Lola3d does both, on the same B-rep body, in the same file.

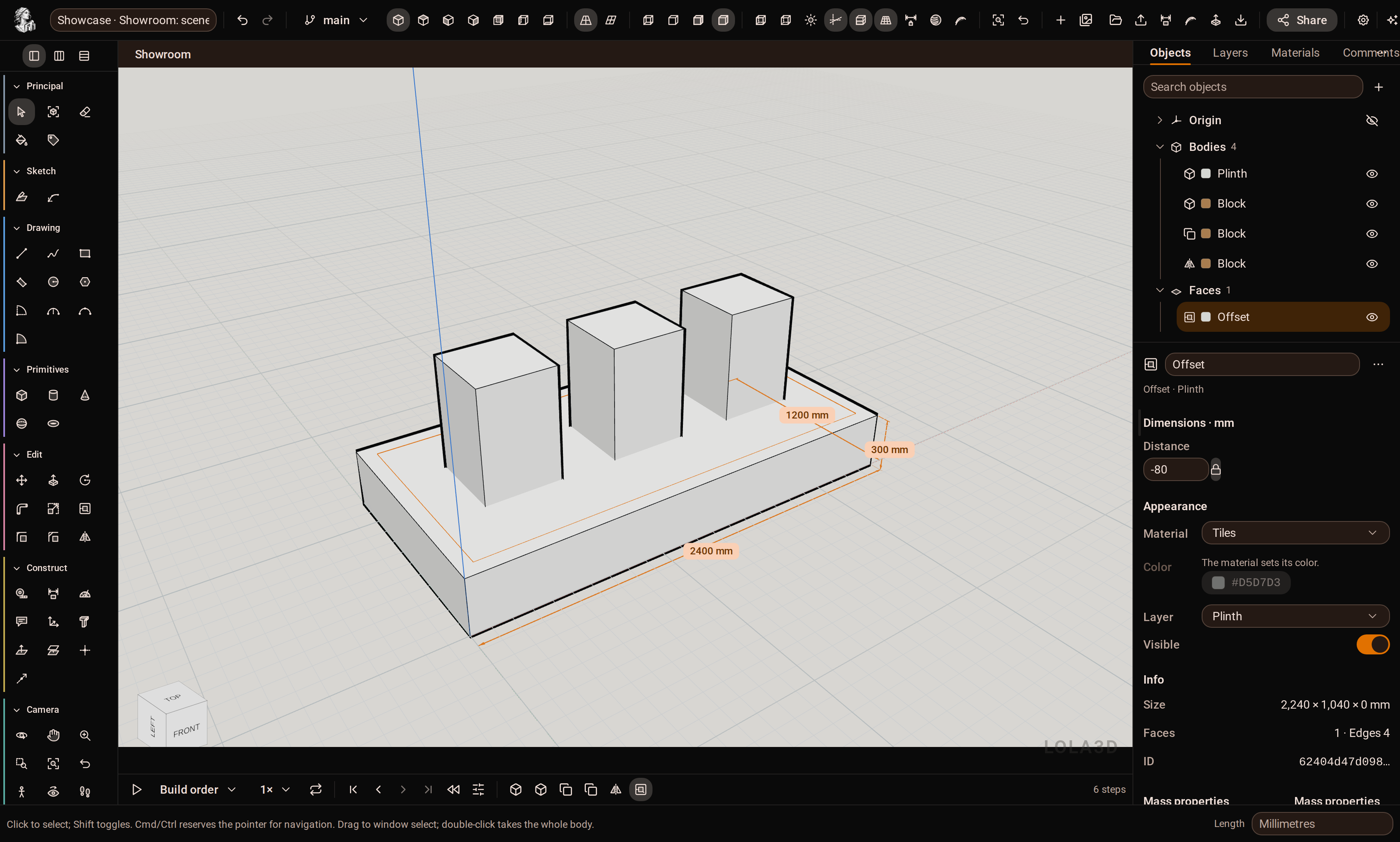

Draw a rectangle on a face, push it, and the body is cut. Inference snaps to endpoints, midpoints, intersections and the axes; modifier keys behave the way your hands already expect. A face region drawn inside another face is imprinted into the body and pushed on its own.
Behind the gesture: a constrained sketch solved by a minimum-change Newton solver that reports its degrees of freedom and refuses to over-constrain. Named parameters with dimensional checking, a timeline you can reorder and roll back, configurations, and branches with a three-way merge.
There is no operation in this application that exists only in the interface. The tool rail, the REST endpoint, the MCP tools and the in-app assistant all drive the same catalogue of 228 actions with the same JSON schemas — so anything you can do by hand, an agent can do by request.

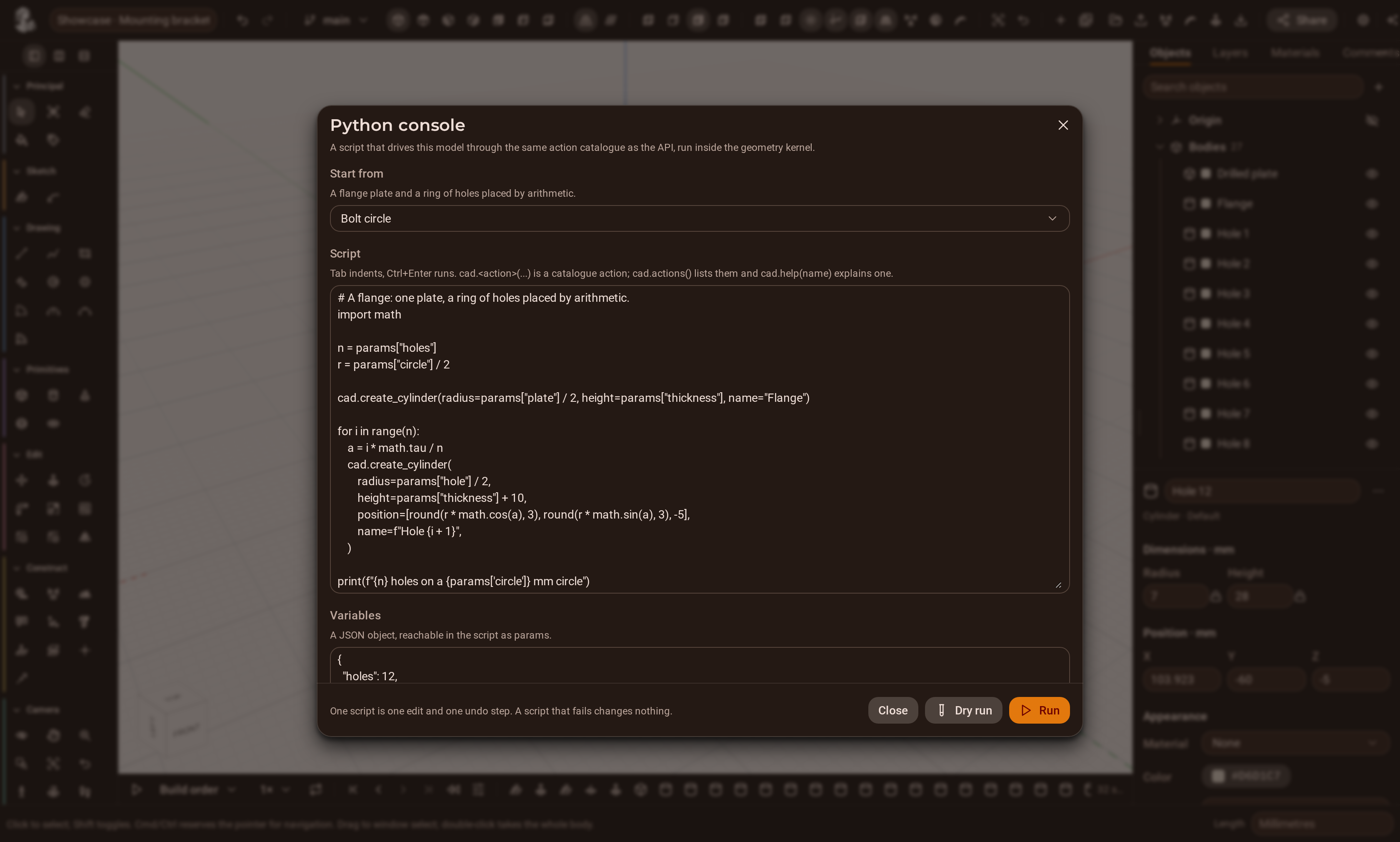

The Python console runs a script inside the geometry kernel itself, with the whole catalogue bound to one name. What it adds is the loop between the calls, and the ability to read the model back in the middle of its own work: two hundred holes placed by a formula, a lattice whose cell count follows its bounding box, a family of parts generated from a table.
# A flange: one plate, a ring of holes placed by arithmetic. import math n = params["holes"] r = params["circle"] / 2 cad.create_cylinder(radius=params["plate"] / 2, height=params["thickness"], name="Flange") for i in range(n): a = i * math.tau / n cad.create_cylinder( radius=params["hole"] / 2, height=params["thickness"] + 10, position=[round(r * math.cos(a), 3), round(r * math.sin(a), 3), -5], name=f"Hole {i + 1}", ) print(f"{n} holes on a {params['circle']} mm circle") result = {"holes": n, "pitch_mm": round(math.tau * r / n, 2)}

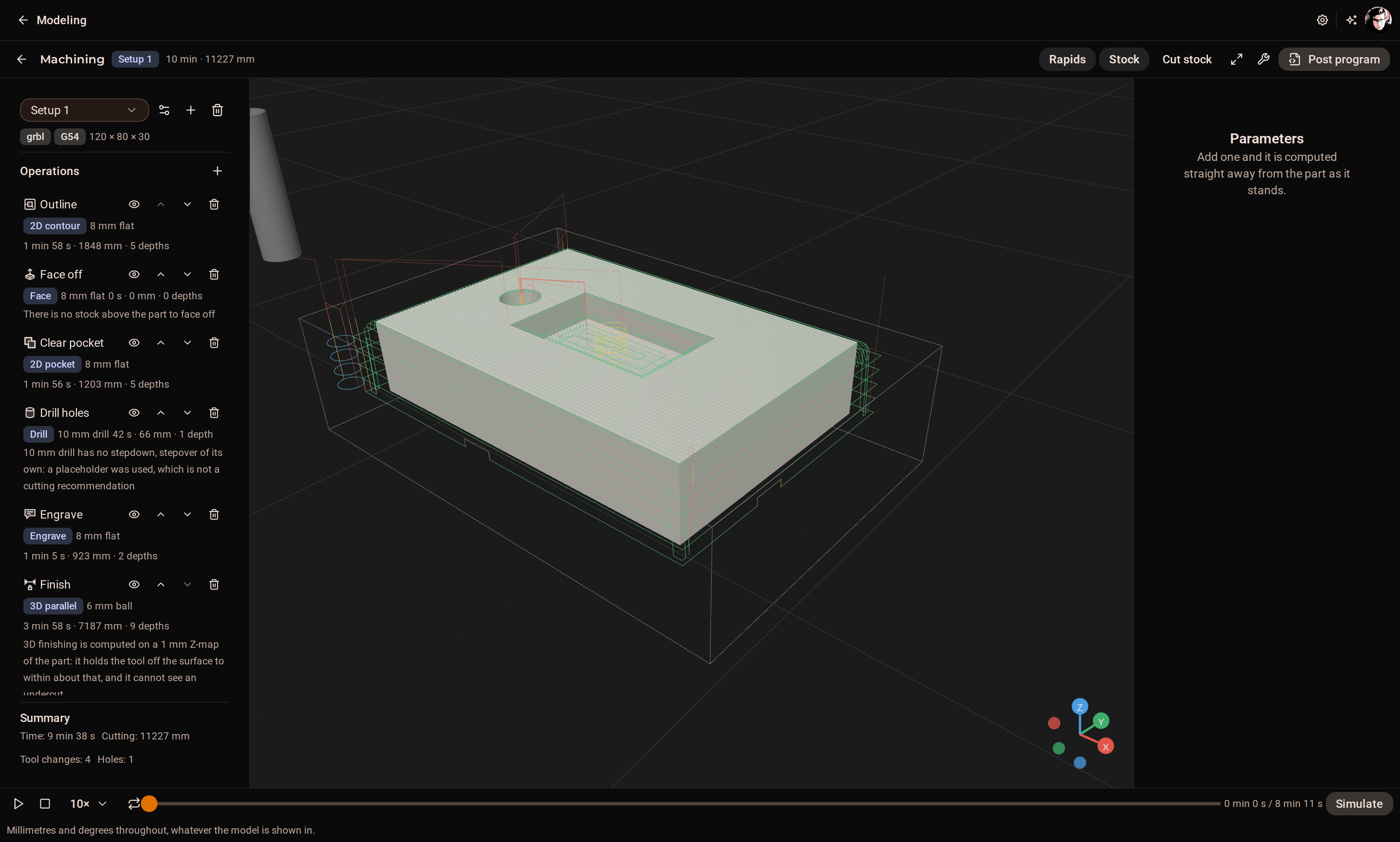

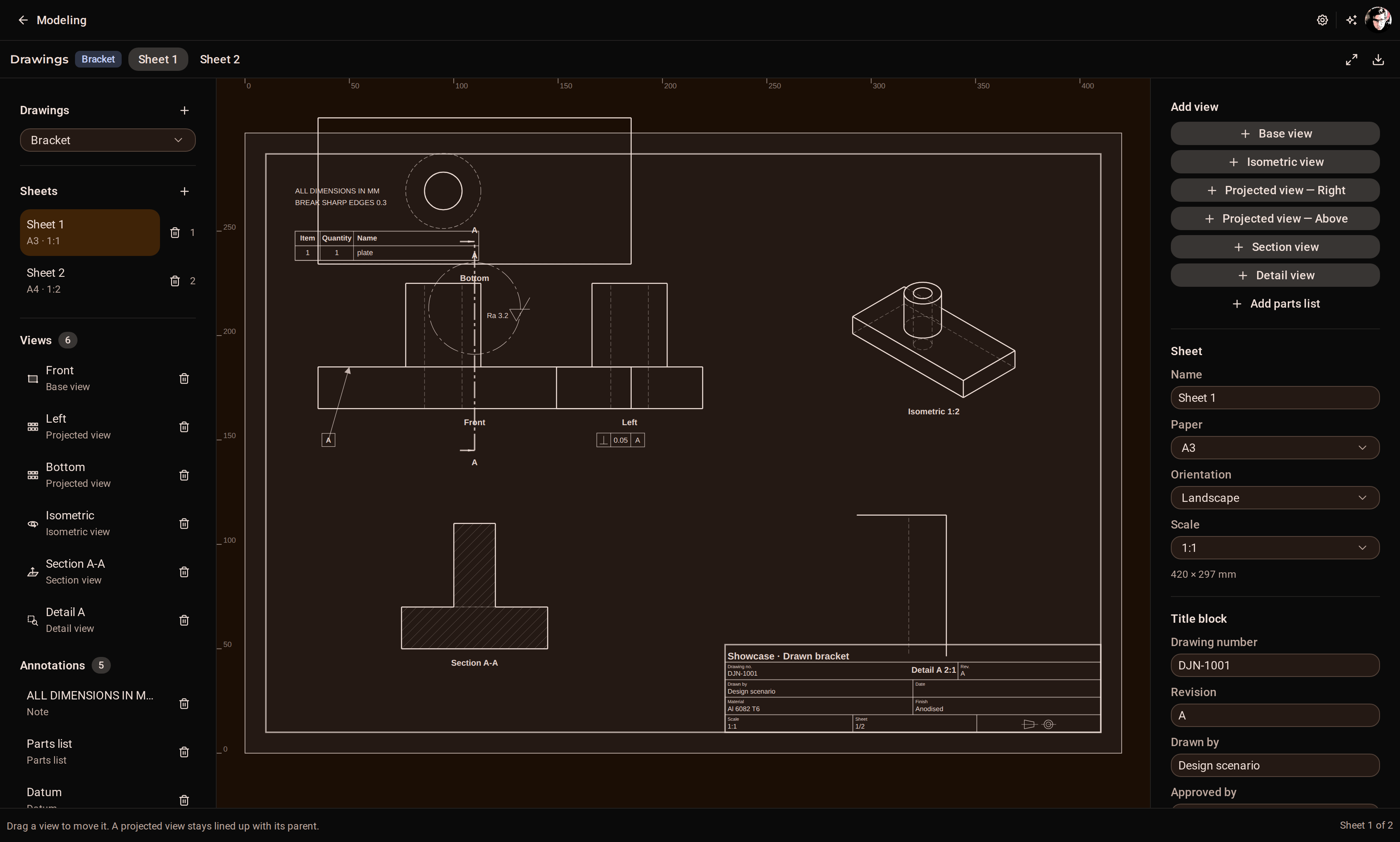

Design it, document it, check it, machine it. Every stage reads the same B-rep body, so nothing is exported to be re-imported and nothing goes stale behind your back.
Every edit carries the revision it was made on. A stale one is refused; a kernel error leaves the document byte-for-byte unchanged. There is no half-applied state to clean up.
Every face and edge carries a name derived from its history. A fillet, a sketch anchor or a plugin placement holds that name — and reports honestly when it had to fall back to geometry, or could not resolve at all.
The kernel holds your document and answers a patch, not a new file. Unchanged bodies keep their GPU geometry. Shapes and meshes are cached on disk, so a restart does not regenerate your models.
A pool of kernel workers, one model pinned to one worker. A request carries a deadline the worker enforces itself, and a worker that dies is replaced without your document being touched.

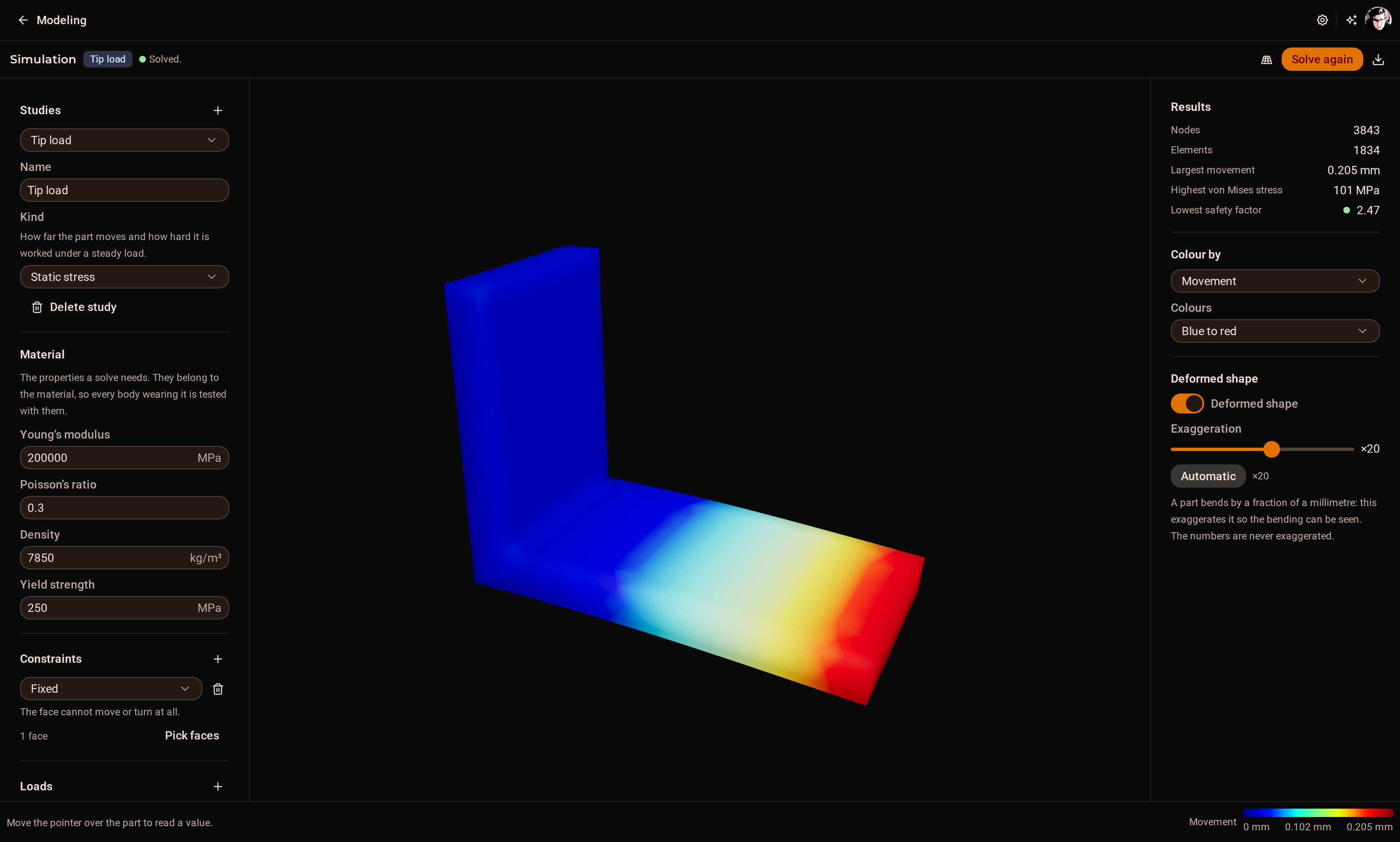

What the simulation does not model, what the CAM simulator cannot see under an overhang, where face naming has edge cases — the documentation says so, in the same place it says what works.
A full queue, a timeout, a stale revision and an impossible fillet are all explained in your language as what became of your document and what to try next.

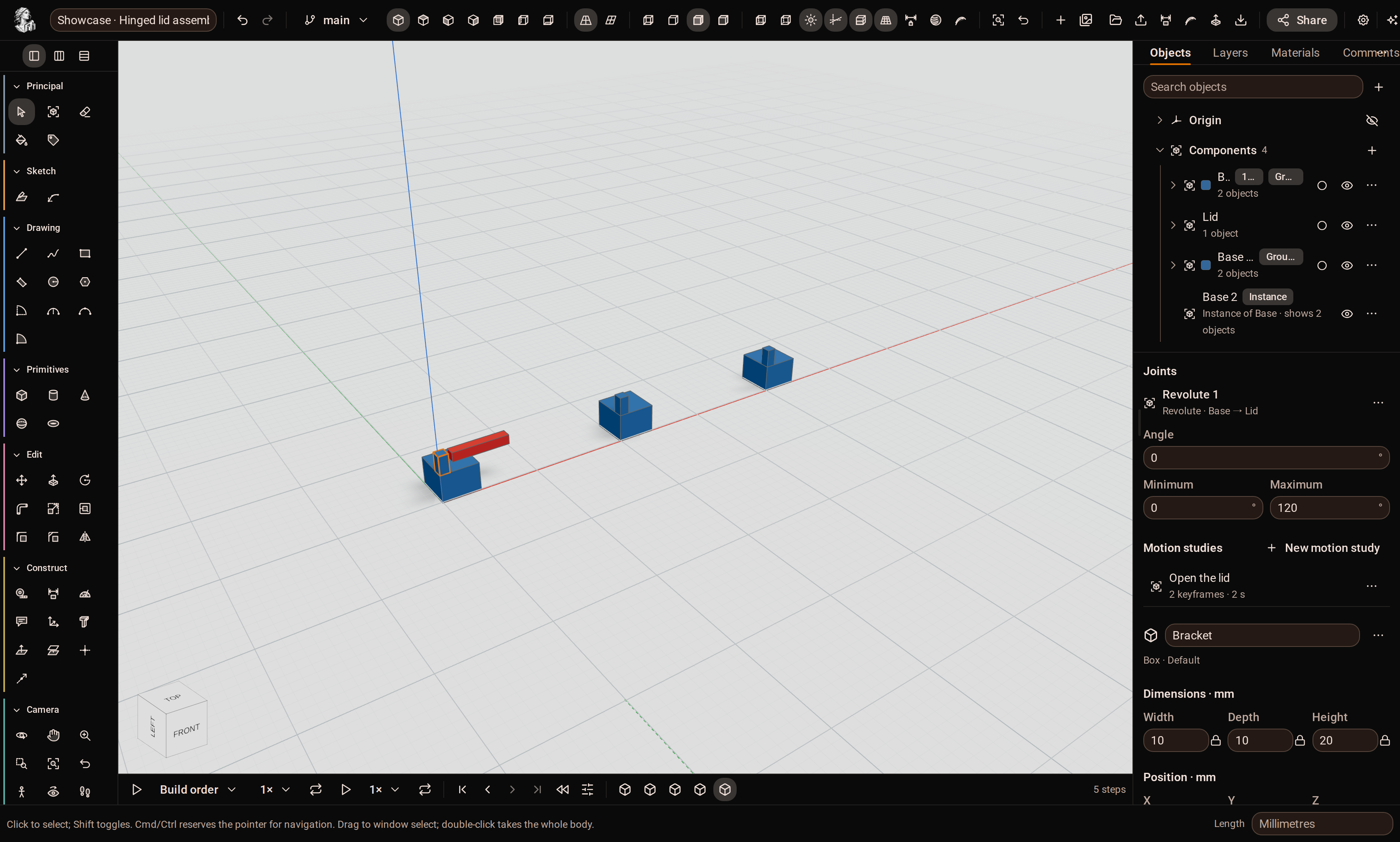

Components nest and place again without being copied. Seven joint types with limits, grounded parts, driven values and motion studies that sample where every part stands. An interference analysis lives on the scene, not in the document, so it is never a stale number.
Models carry an owner, a visibility and members. Committed revisions are pushed live, with presence — colour, selection and camera — that never touches the document. Comments anchor to an object, a face and a point. Share links are a credential of their own, so a reviewer needs no account.
Collaboration in detailThe fastest way to judge a CAD tool is to use it for ten minutes. The studio is one click away, in the browser you already have open.
